Enable digital inputs
Interfacing Tosca with Synapse ›› Setting up Synapse ››

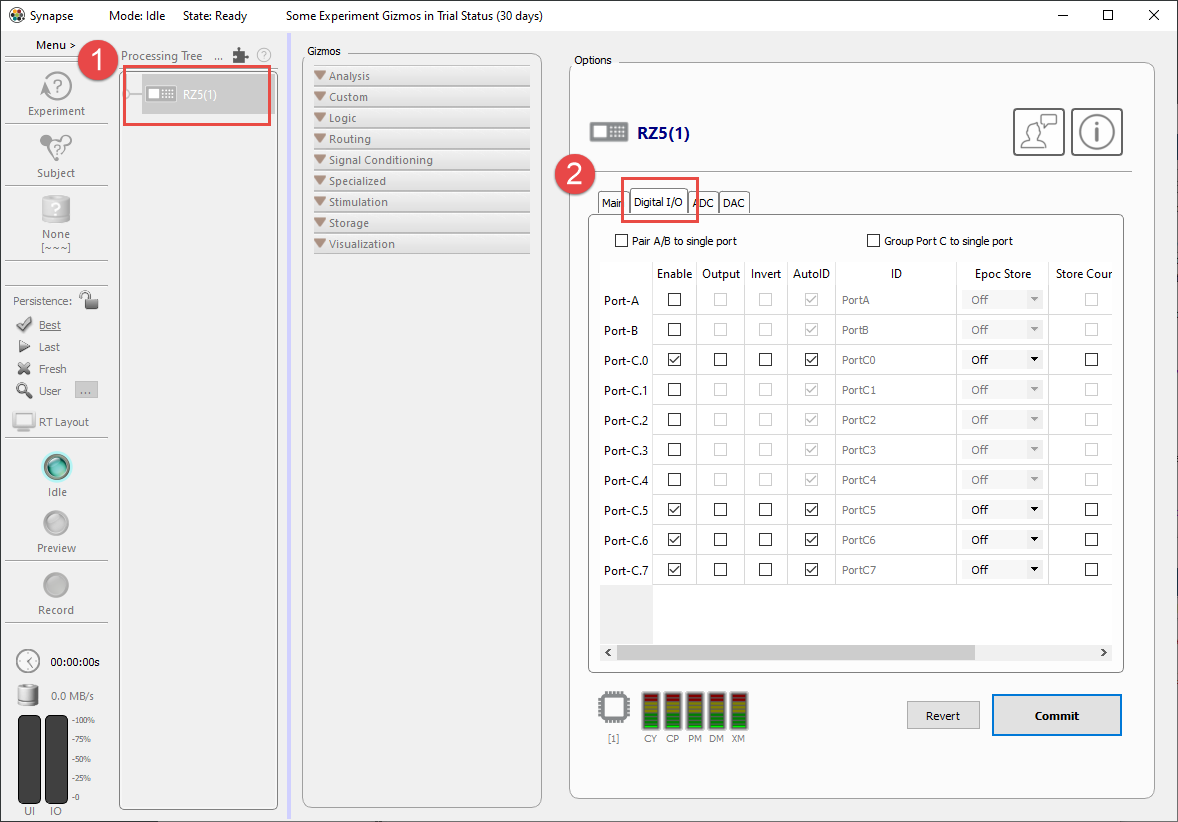

In the main Synapse window,
1. Click on the TDT processor (e.g. RZ2 or RZ5)
2. Click on the "Digital I/O" tab at the far right and enable Port-C.0 and Port-C.5-7 as shown below.
|
